ZIEHL-ABEGG Motor for screw spindle pump

Article no.: HYZTA132.20-2
12 months guarantee

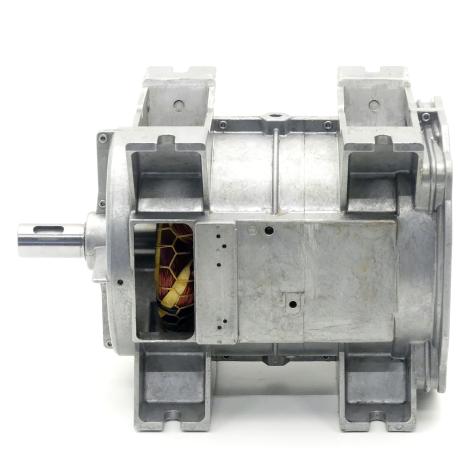

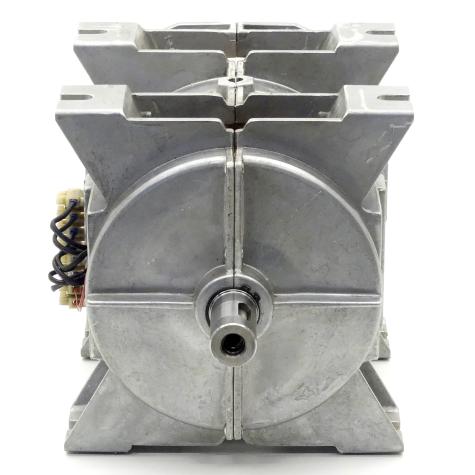

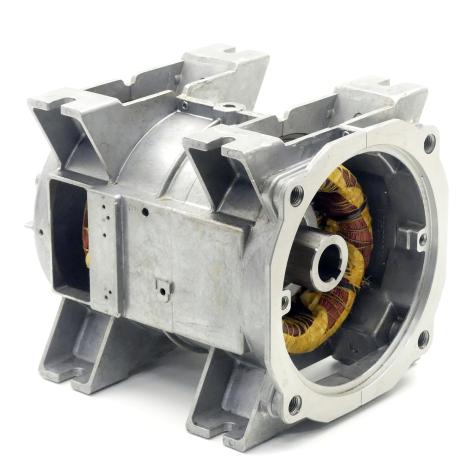

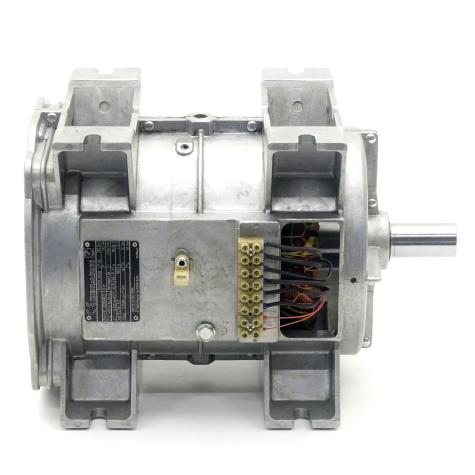

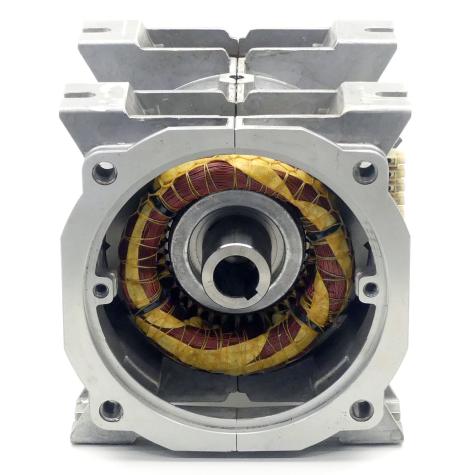

Motor for screw spindle pump
Motor for screw spindle pump
Motor for screw spindle pump
Motor for screw spindle pump
Motor for screw spindle pump
Motor for screw spindle pump
All images are original images.
848,00 € net*
In stock: 1 piece
? Display cart in PayPal
Article no.: HYZTA132.20-2
Product condition: Used from old stock
Shipping: Standard shipping
Guarantee in months: 12
Stock: 1
* Prices excl. VAT plus shipping costs

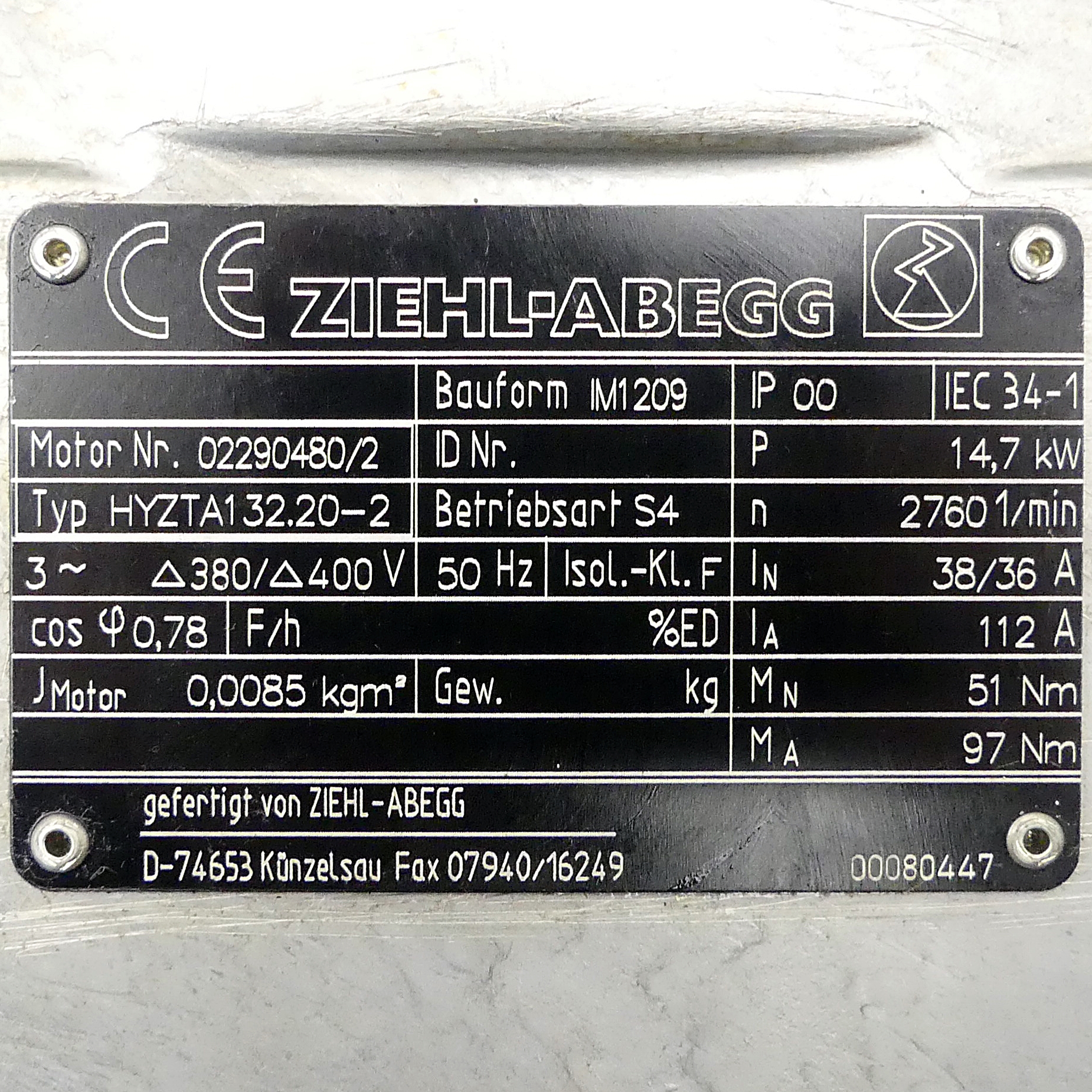

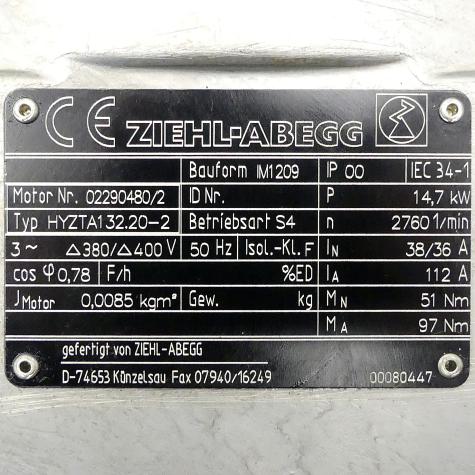

Specification

Product condition
Used from old stock
Manufacturer
Ziehl-Abegg
Guarantee in months
12
Frequency
50 Hz
Rotation Speed
2760 rpm
Power
14,7 kW
Voltage
3~ Δ380/Δ400 V
Current
In: 38/36 A ; Ia: 112 A
Protection Class (IP)
IP 00
Shaft Diameter
32 mm
Shaft End
Smooth with M12 internal thread
Feather Key
10x 28 mm Cut-out
Diameter Of Pitch Circle
260 mm / 195 mm
Torque
Mn: 51 Nm ; Ma: 97 Nm
Weight
33.4 kg
Stock location
Rosenfeld
Stock ground
PC20C1
