Siemens Servo motor

Article no.: 1FT6105-8AF71-4ED1
12 months guarantee

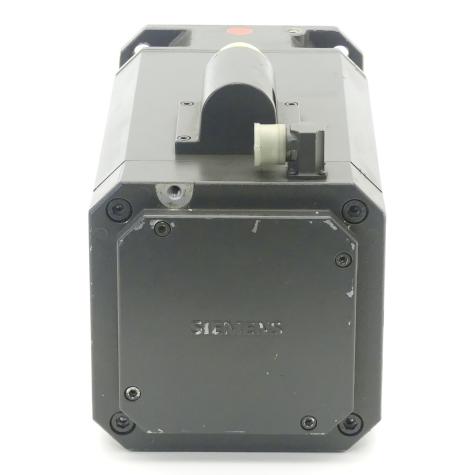

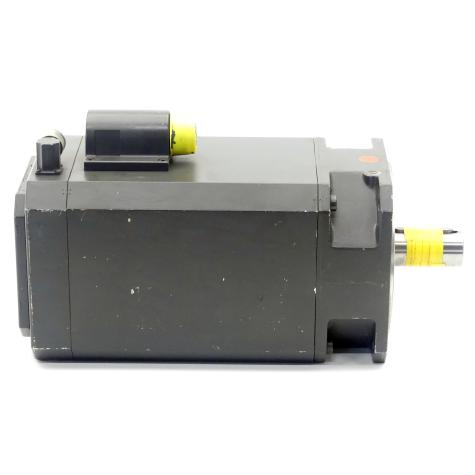

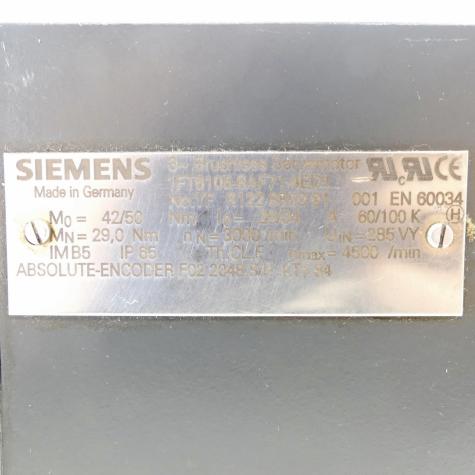

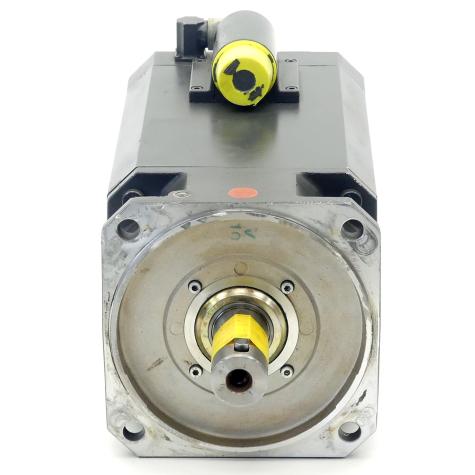

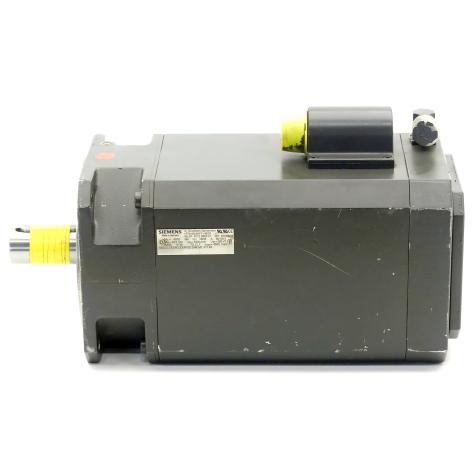

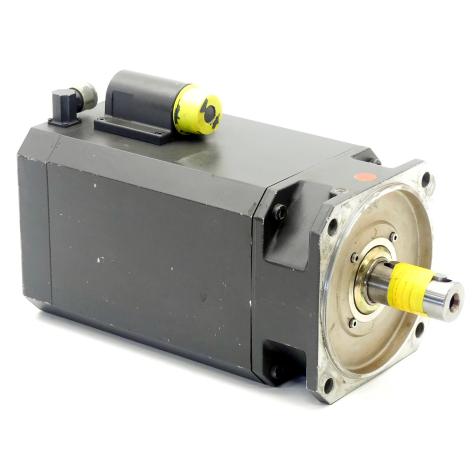

Servo motor
Servo motor
Servo motor
Servo motor
Servo motor
Servo motor
All images are original images.
2.975,00 € net*
In stock: 1 piece
? Display cart in PayPal
Article no.: 1FT6105-8AF71-4ED1
Product condition: Used from old stock
Shipping: Standard shipping
Guarantee in months: 12
Stock: 1
* Prices excl. VAT plus shipping costs

Specification

Product condition
Used from old stock
Manufacturer
Siemens
Guarantee in months
12
Rotation Speed
nmax 4500 min⁻¹ / nN 3000 min⁻¹
Voltage
Uin 285 VY
Current
I0 28/34 A
Protection Class (IP)
IP 65
Shaft Diameter
38 mm
Shaft End
Smooth with M12 internal thread
Feather Key
10 mm x 60 mm (70 mm cut-out)
Flange Diameter
180 mm
Diameter Of Pitch Circle
214 mm
Torque
M0 42/50 Nm / Mn 29.0 Nm
Weight
39 kg
Stock location
Rosenfeld
Stock ground
PC19D1
