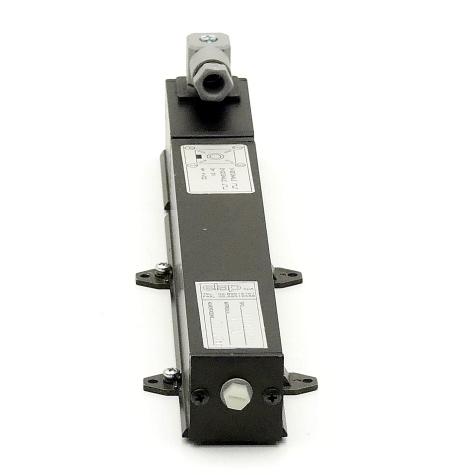

Elap Linear Transducer (Incremental) PE0501200C

Article no.: PE0501200C
12 months guarantee
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
Linear Transducer (Incremental) PE0501200C
All images are original images.
195,00 € net*
In stock: 1 piece
? Display cart in PayPal
Article no.: PE0501200C
Product condition: Used from old stock
Shipping: Express delivery possible
Guarantee in months: 12
Stock: 1
* Prices excl. VAT plus shipping costs

Used item. New items and other device versions upon request.

Specification
Resolution: 0.05mm
Stroke length: 120mm
Pulses per stroke: 600
Supply voltage: 12-24VDC
Outputs: Open Collector
Output signals: Square wave A B signal 90 degrees shifted
Protection class: IP64
Max. speed: 120m/min
Max. acceleration: 40m/sec²
Dimensions (no accessories attached) ca.: 31mm x 31mm x 270mm

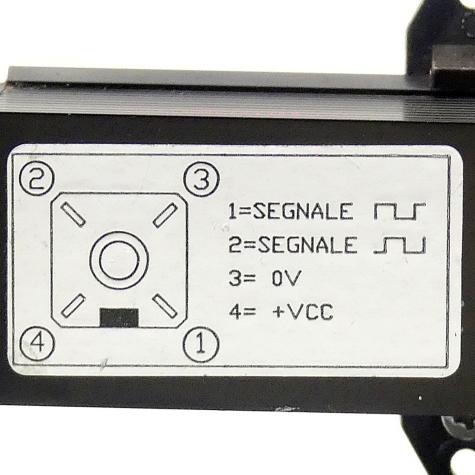

Accessories included: 4 pole solder type connector, 2 mounting brackets

Specification

Product condition
Used from old stock
Function
Tested
Manufacturer
Elap
Guarantee in months
12
Weight
0.36 kg
Stock location
Rosenfeld
Stock ground
A18A03-BFL
